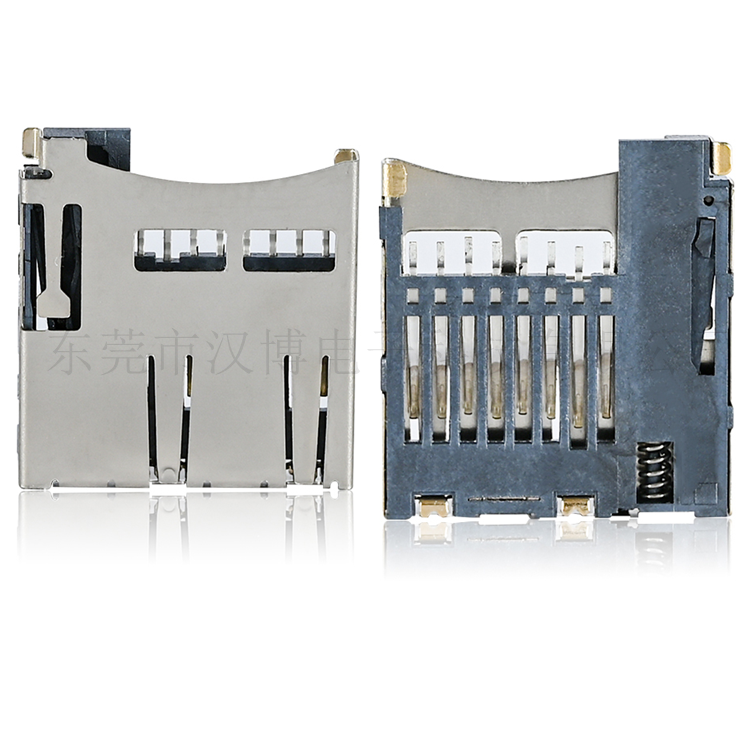

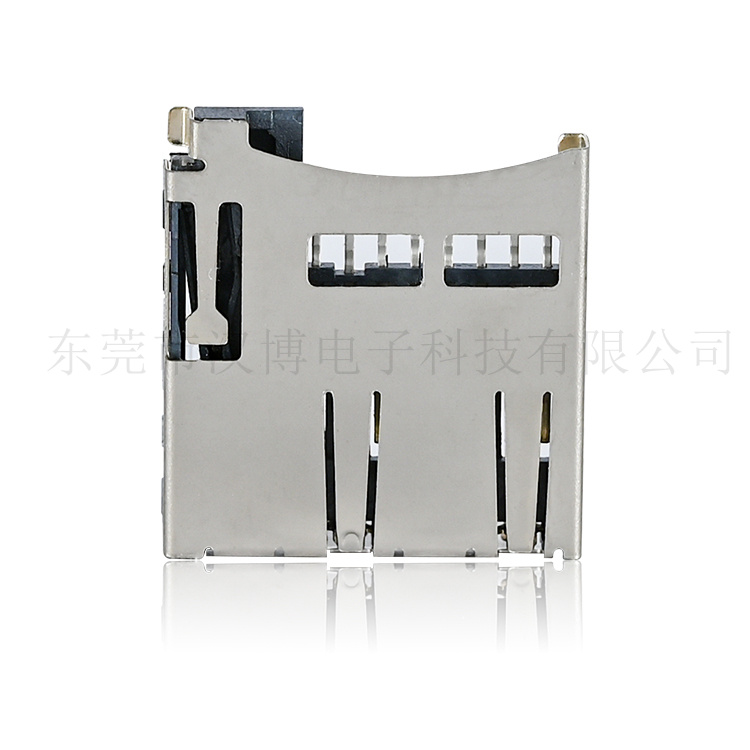

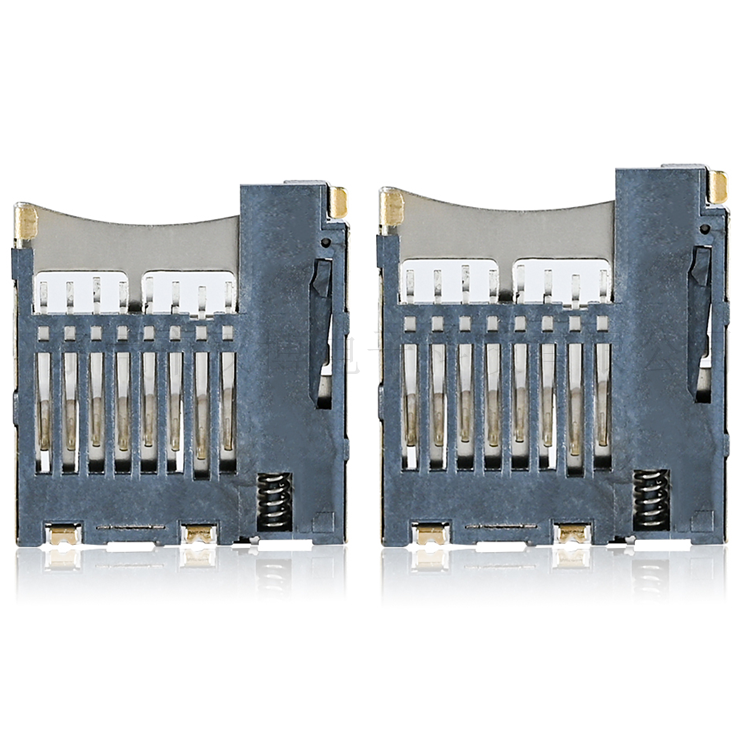

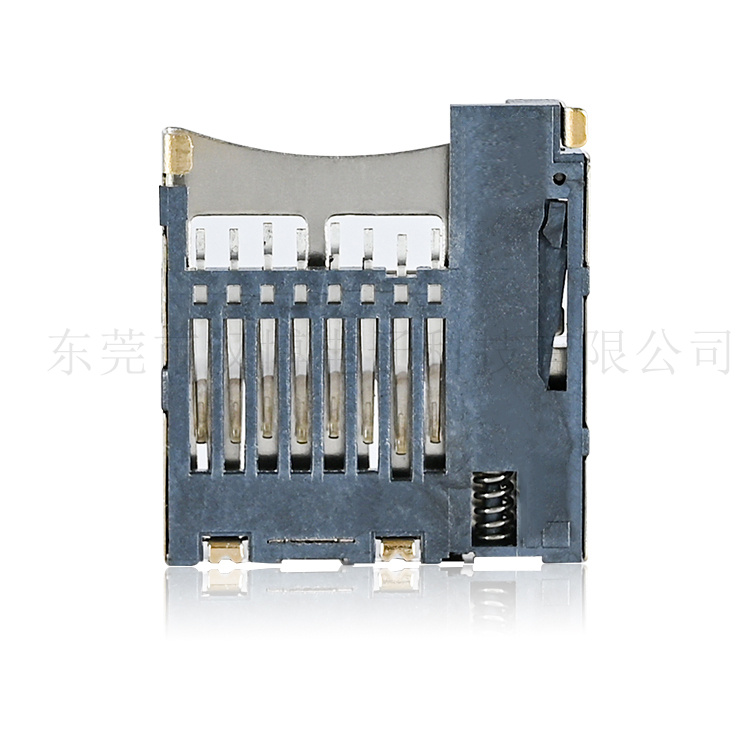

TF內焊8P常閉型H1.85

TF卡座

品牌：漢博（HANBO）	產品型號：TF-011
工作溫度：-25oC~+85oC	最小包裝：1000PCS/圓盤

應用領域:數碼產品、安防、電腦、通訊產品、家用電器、智能家居、智能穿戴產品等。

聲明：有關于產品的規格、參數、壽命、工作溫度、手感、防水等級等數據，只作于參考，如需詳細測試報告，請聯系業務人員!

請聯系相關業務索取CAD/3D文件

特性
產品文檔

產品介紹

類型

產品分類

連接器

產品系統

卡座

卡座產品種類

TF卡連接器

類型

Micro型

位數

8位

高度(mm)

H1.85

方向

臥式

顏色

黑色

電氣

電流(最大)

0.5A

電壓(最大)

100V

接觸電阻

80 mΩ Max

絕緣電阻

1000 MΩ Min

耐電壓

500V AC r.m.s

工作溫度范圍

-25oC~+85oC

機械

裝卡方式

自彈式

安裝方式

表面貼裝

耐用型(插拔次數)-最多次

5000

材料

電鍍類型

觸點鍍金,尾部鍍霧錫

電鍍厚度

Gold flash

樹脂材質

LCP

阻燃性等級

UL94 V-0

包裝

包裝方式

卷裝
